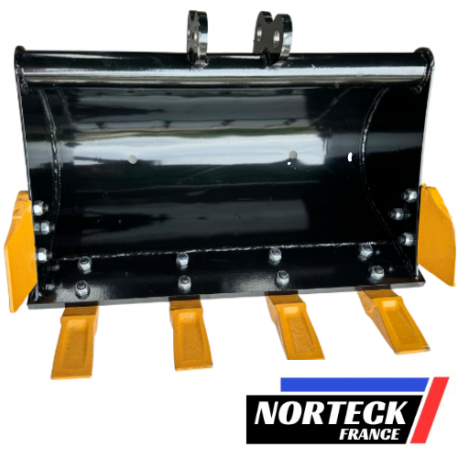

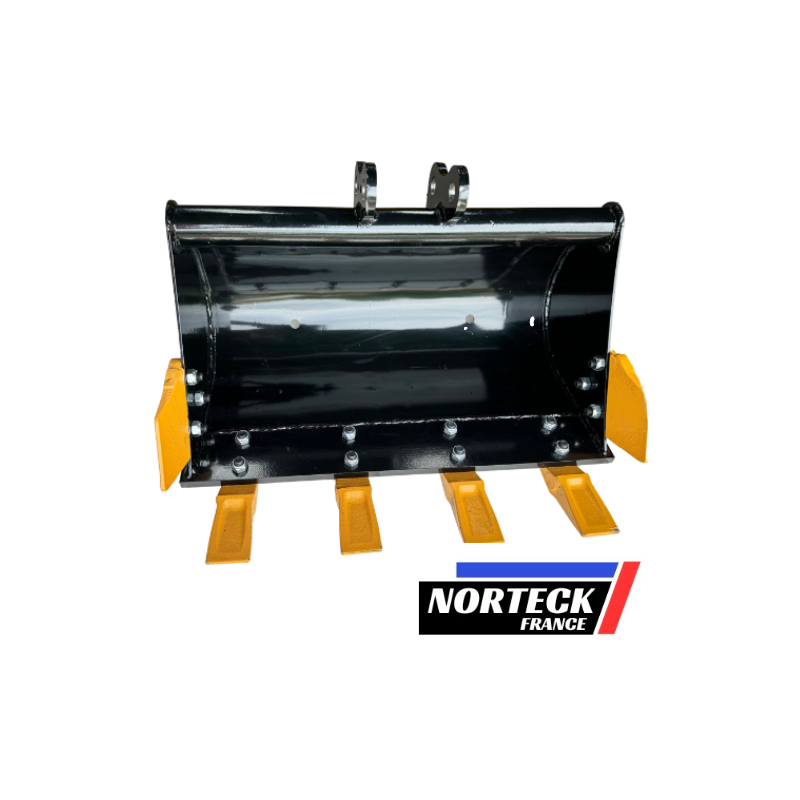

60 cm Norteck Digging Bucket for Mini Excavators

Four bolted teeth, a 60 cm cutting width, and a 25 mm mounting pin: this Norteck digging bucket's spec sheet starts with its attachment dimensions. The operator preparing a series of trenches or a light foundation checks these two points before any work—the pin diameter at the dipper, then the exact pin spacing of the quick coupler.

Replaceable Teeth and Excavated Volume

The 4 teeth supplied as standard are bolted on. This attachment method allows individual replacement without touching the bucket's welded structure. The 60 cm working width determines the trench width per pass and the volume moved on a 1-tonne class bucket.

Fits Mini Excavators with 25 mm Pins

Mounting compatibility is based on the 25 mm pin diameter. Operators running a Kubota KX36-3, KX41-2, or JCB 801 will find a matching pin geometry. For any other mini excavator brand, checking the pin diameter and pin spacing remains the first verification step.

For narrower work, the 20 cm digging bucket offers a reduced cutting width for precision jobs. On sites focused on cleaning up or handling loose material, the 60 cm cleaning bucket is a dedicated option for trench cleaning and grading trench bottoms.
