80 cm Cleaning / Skeleton Screening Bucket
Référence : GCS80
80 cm skeleton screening bucket for sorting bulk materials and draining water on wet sites. Mounts on 25 mm pins with 90 mm spacing.
304,17 € Tax Excluded
€385.00
€365.00 Tax Included-€20.00
Home delivery: €38.90 incl. VAT
Dispatch between Tue 22 and Thu 24
Warehouse in France - Champagne-Ardenne
Last items in stock

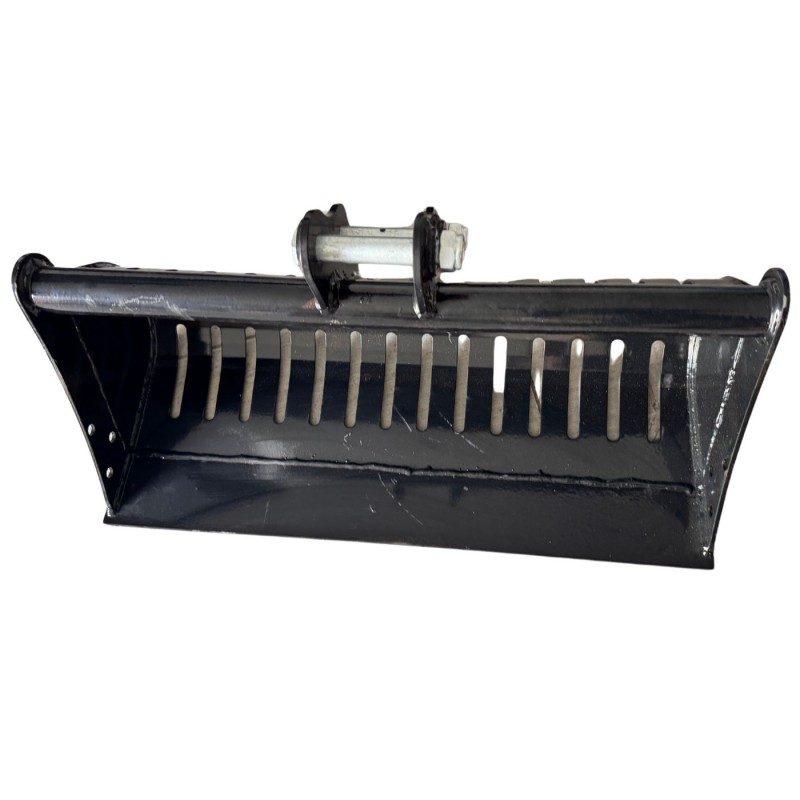

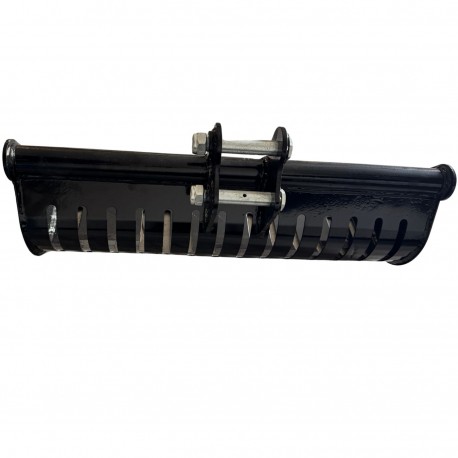

80 cm Cleaning / Skeleton Screening Bucket
Material sorting with a bucket depends on precise bar spacing. This 80 cm cleaning screening bucket removes fines and water while retaining sized material, a common operation when reworking trenches or on waterlogged ground.
Mounting and Carrier Compatibility
The frame accepts 25 mm diameter pins, with a 90 mm pin spacing. This standard dimension allows mounting on Norteck SX10+, SX16, and SX16-pro mini-excavators. The same mount is specified for Kubota KX36-2, KX36-3, KX41-2, and JCB 801. Pins are not supplied with the attachment.
Technical Specifications
- Working width: 80 cm
- Mounting: 25 mm diameter pin
- Pin spacing: 90 mm
- Structure: skeleton with screening bars
- Drainage: holes in the bucket bottom
- Cutting edge: welded smooth blade
Field Performance
The skeleton structure reduces carrier weight and improves drainage. Oversized fines pass between the bars, while coarser material remains in the usable volume. A smooth blade welded on the front edge enables clean pick-up after emptying, without leaving uneven ridges.
This screening bucket complements an 80 cm skeleton grid screening bucket and a Norteck 100 cm rake bucket on sites requiring multiple sorting or grading passes.
FAQ
Which mini-excavators accept this 80 cm screening bucket?
The frame is specified for Norteck SX10+, SX16 and SX16-pro, as well as Kubota KX36-2, KX36-3, KX41-2 and JCB 801. The mounting uses 25 mm pins with 90 mm spacing.
Why is this cleaning bucket called skeleton?
Its skeleton structure features screening bars that let fine material and water pass while retaining larger pieces. This also reduces the attachment's weight.
How is water drained during work?
There are drainage holes in the bucket bottom. They release retained water and lighten the load when lifting.
Does the welded smooth blade change the bucket's use?
Yes, it allows grading and leveling after the fines are emptied, providing a cleaner finish on trench rework.
