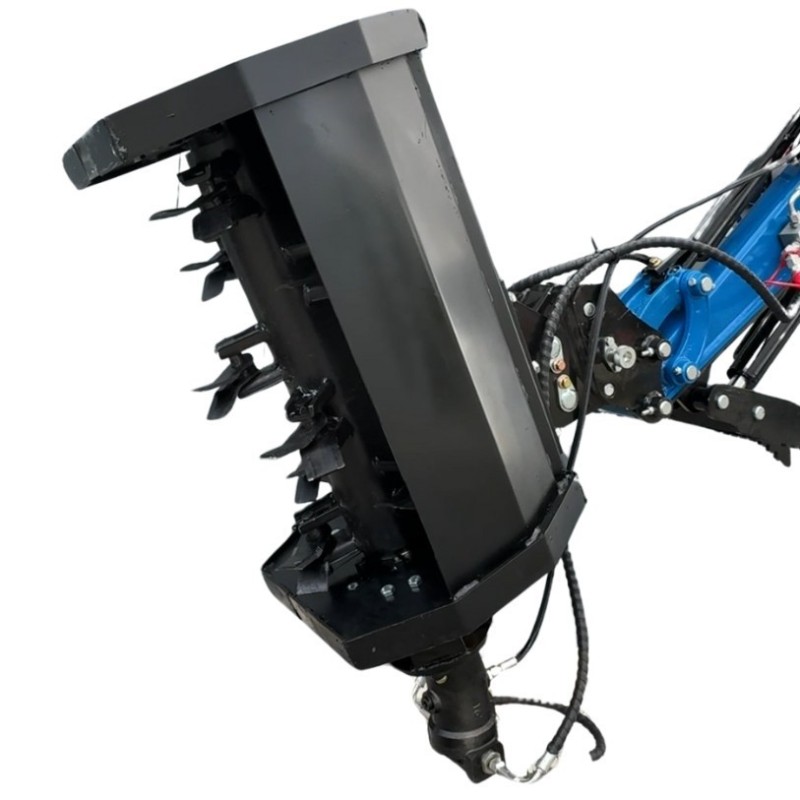

64cm Hydraulic Flail Mower for 1–1.8t Mini Excavators

With a 64 cm cutting width and a 112 kg operating weight, this hydraulic flail mower suits compact carriers with an oil flow of 20 to 35 L/min. It is designed for machines in the 1 t to 1.8 t class. Before mounting, check three points on your carrier: the available hydraulic flow, the rotation direction of the auxiliary circuit, and the presence of a third drain line returning motor oil to the tank.

Pre-Attachment Checks

The carrier's hydraulic flow must be sufficient to drive the rotor. A pump delivering at least 25 to 30 L/min is recommended. The cutting rotor spins in one direction only; reversing the auxiliary circuit's rotation will prevent cutting. Finally, the mower's motor requires a third drain hose connected directly to the hydraulic tank, discharging freely.

The cutting system uses high-strength swinging hammers. Cutting height ranges from 20 to 80 cm. Operating pressure is 130 to 180 bar.

Technical Specifications

• Cutting width: 64 cm
• Cutting height: 20–80 cm
• Weight: 112 kg
• Operating pressure: 130–180 bar
• Required flow: 20–35 L/min
• Cutting system: high-strength swinging hammers
• Hydraulic connections: fittings included, adaptable to various models

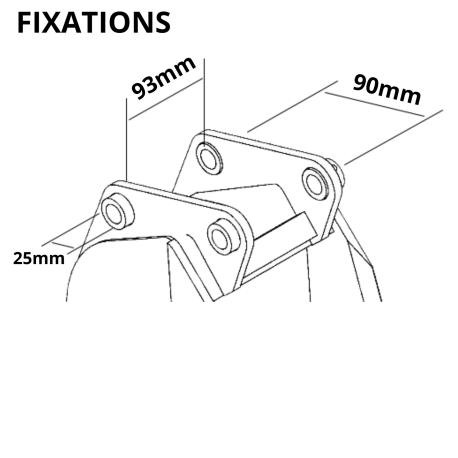

Common applications include clearing brush, brambles, tall grass, ditches, embankments, and roadside edges. The mower mounts on standard couplers; adapter plates for specific coupler systems can be made to order.

On forestry or agricultural sites, this flail mower pairs well with other compact tools for clearing and sorting. A 80 cm grading bucket can then separate fine soil fractions from woody debris. For vertical cuts or dense hedges, a hydraulic flail hedge trimmer rounds out your attachment spread without repositioning the carrier.
