Norteck Mini Excavator Quick Hitch

The Connection Point Between the Dipper and the Tool

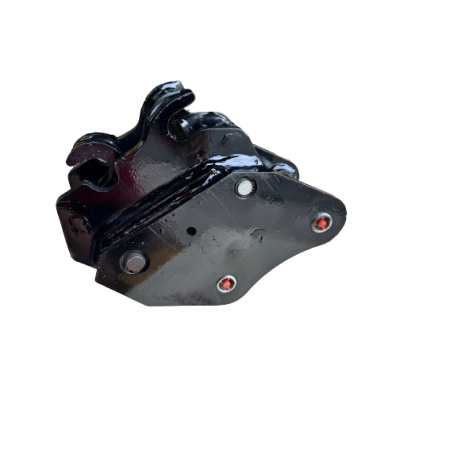

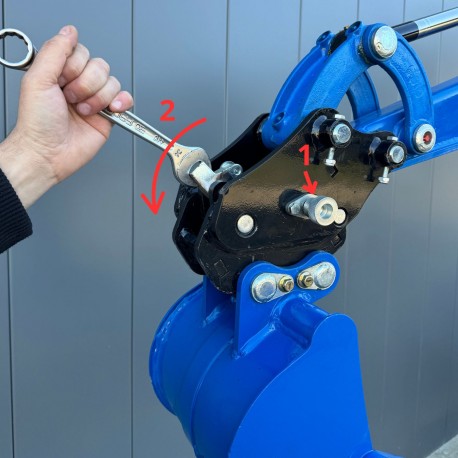

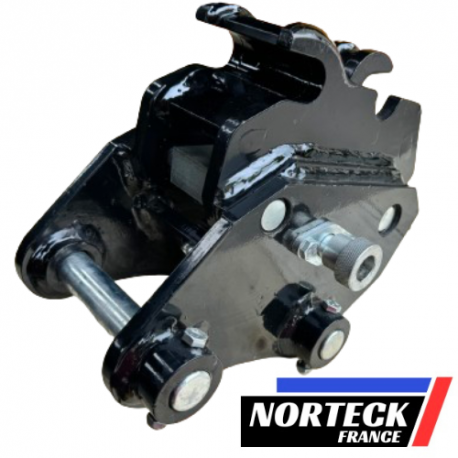

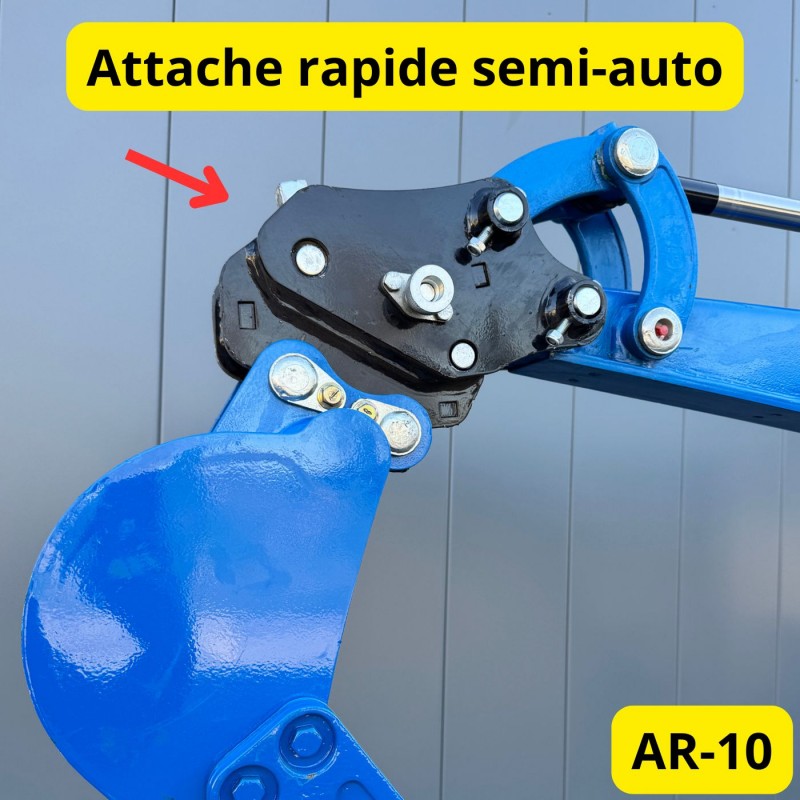

On a mini excavator, every minute spent wrestling with pins and cotter pins is a minute the machine isn't moving dirt. This semi-automatic quick hitch replaces the traditional pin-on connection. The operator stays in the cab: the tool locks via gravity, with no manual intervention during attachment. Detachment remains a deliberate action, requiring a precise motion to trip the mechanism.

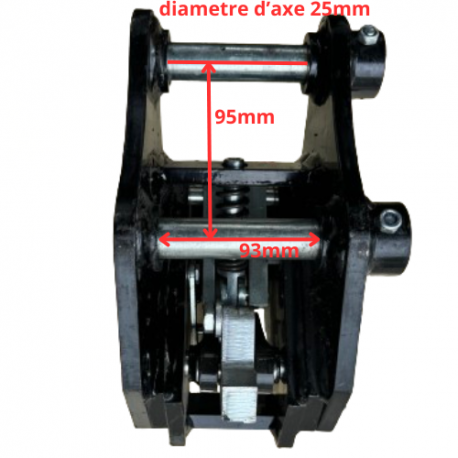

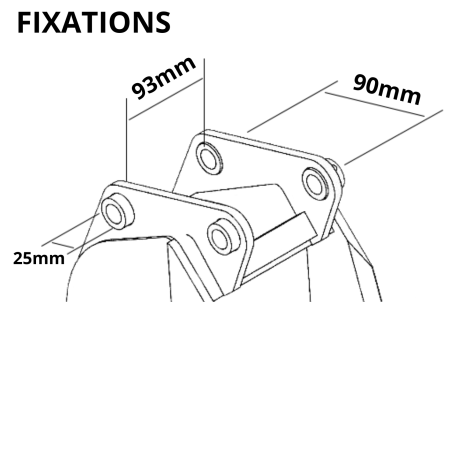

The system accepts a 25 mm diameter pin, a common size on Norteck compact excavators. Verified fitments cover the SX10+, SX16, and SX17 models. Operators have also mounted it on Kubota KX36-2, KX36-3, KX41-2, and JCB 801 chassis. Before ordering, measure the exact center distance of the mounting points on your dipper: this dimension confirms fitment compatibility, not just the machine's weight class.

A Mechanical Link, Not a Comfort Accessory

This component proves its worth on sites where you're constantly swapping tools: switching from a cleaning bucket to an auger, swapping a hydraulic breaker for a trenching bucket. The sequence is three steps: unclip the tool on the ground, present the new tool, let the device close itself. No auxiliary hydraulic circuit is needed for attachment, which simplifies retrofitting on machines without a dedicated line.

For machines with a bolt-on hitch, the mounting logic differs: the bolt-on version requires manual tightening at every tool change. The semi-automatic model trades that tightening for a mechanical locking point. Both solutions share the same 25 mm pin and the same dipper geometry constraints.

After installation, check for residual play in the pin bearings. Excessive play wears out the bushings on your attachments prematurely. The 25 mm dimension must be held to a tight tolerance; a pin worn by even a few tenths of a millimeter should be replaced before engaging a heavy tool. The Bucket Pin 25x125 mm covers this common replacement need.

The Norteck 60 cm cleaning bucket mounts directly to this type of hitch for ditch work and bank finishing: Norteck 60 cm Cleaning Bucket.
