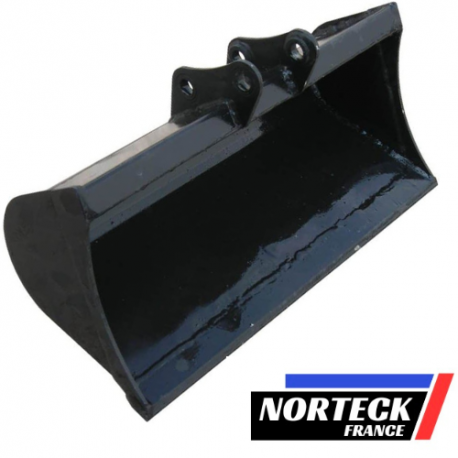

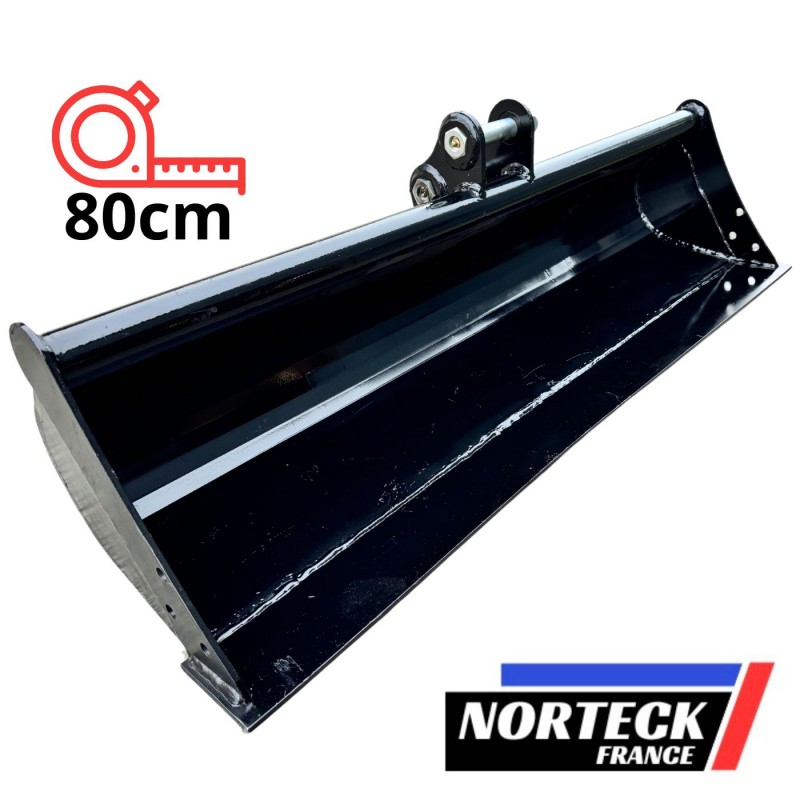

Norteck 80 cm Ditching Bucket for Mini Excavator

The 80 cm ditching bucket is defined by its mounting dimensions: a 25 mm diameter pivot pin and a 90 mm pin spacing. These two values determine fitment on the machine's arm, before even looking at blade profile or bottom geometry. The tool is supplied without the pin, leaving the operator to reuse or replace the part as wear dictates.

Mounting Compatibility and Applications

This 80 cm width suits compact carriers whose hydraulic circuit and arm kinematics accept a direct-mount ditching tool. The reference applies to certain Norteck models, but also to machines from other manufacturers sharing the same pin spacing. Before ordering, verifying the pin/spacing combination is the primary check to avoid a mounting error.

Technical Specifications

• Working width: 80 cm
• Mounting: 25 mm diameter pin
• Pin spacing: 90 mm
• Bottom: perforated for water and mud drainage
• Cutting edge: smooth welded blade
• Mounting pin: not included

The perforated bottom serves a precise purpose in saturated ground: it reduces water retention during lifting and aids dewatering of excavated material. The smooth welded blade, with no bolt-on teeth, promotes a clean finishing profile for grading or bank restoration work.

Ditching, Backfilling and Profiling

For a clogged ditch or a trench to fill, this bucket type moves volumes without attempting to break them up. The 80 cm width balances load capacity against access to tight areas, where a 100 cm ditching bucket would be less maneuverable. For operations requiring lateral tilt, the Norteck 80 cm Tilt ditching bucket adds a degree of freedom without changing the primary mounting.

Operators who switch regularly between a digging bucket and a ditching bucket will find the mini excavator quick coupler a way to cut tool change time on site. The 25 mm pin remains central: excessive play in the joint can accelerate bore ovalization and compromise assembly rigidity under load. Checking this point is part of the inspections to perform before each work session.
